Wireless Tiltmeter (MEMS) in the UK & Worldwide

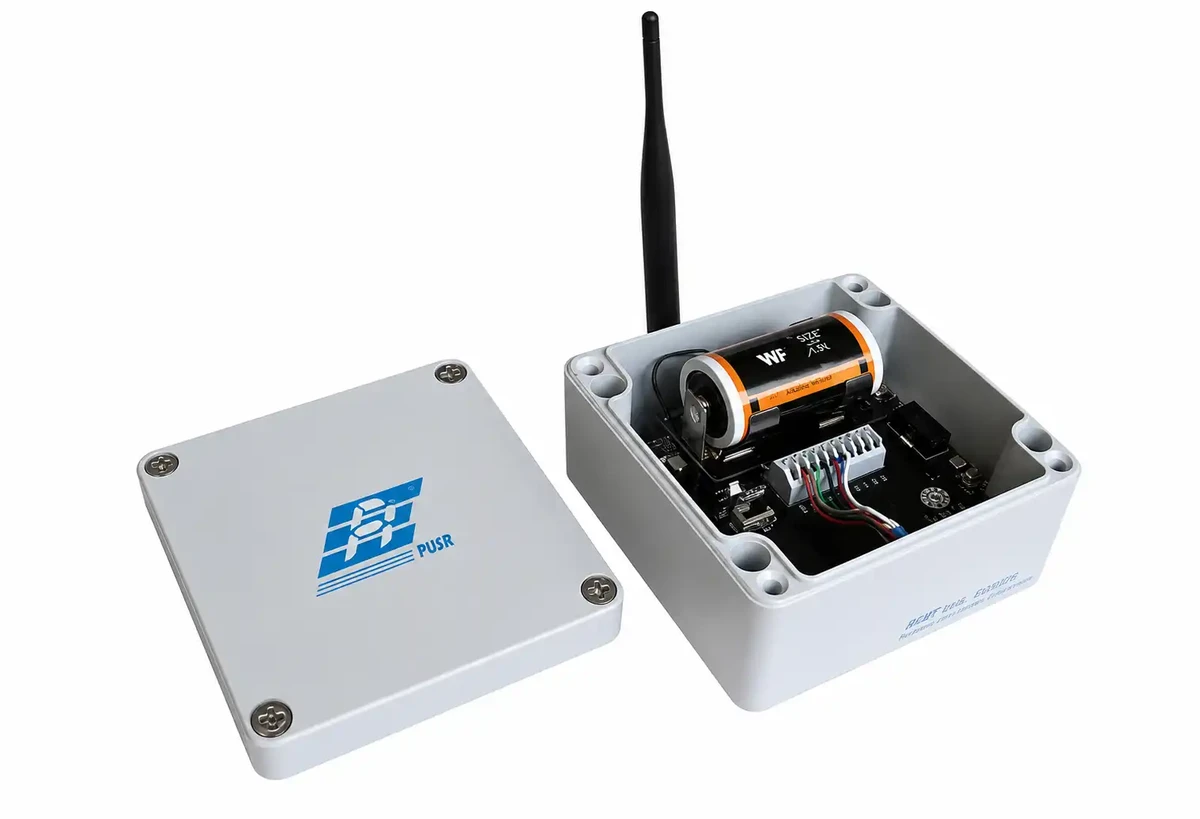

A Wireless Tiltmeter (MEMS)

A Wireless Tiltmeter (MEMS) is a compact, ultra-precise monitoring device used to detect changes in the inclination or lean of a surface, such as a precariously balanced boulder or a mountain retaining wall. Utilizing Micro-Electro-Mechanical Systems (MEMS) technology, the sensor acts like a digital carpenter’s level, measuring even the slightest deviation from a vertical or horizontal axis. Because it is wireless and often battery-powered with solar backup, it is designed for deploy and forget missions in remote, inaccessible areas. When the rock it is attached to tilts indicating a potential landslide or collapse the device immediately transmits the angular change via long-range radio or satellite to your command center, providing a critical early warning before a total structural failure occurs.

The Mechanism

· MEMS Sensing: Inside the device is a tiny silicon chip with microscopic fingers that move when the sensor tilts; this movement changes the electrical capacity of the chip, which the device converts into an exact angle.
· Gravity Reference: The sensor uses the Earth's gravity as its constant zero point, allowing it to detect a change in tilt as small as 0.001 degrees.
· Three-Axis Monitoring: Most modern tiltmeters measure movement on three axes (X,Y, and Z), meaning they can detect if a rock is leaning forward, sliding sideways, or rotating.
· Threshold Triggering: You can program the device to stay in a sleep mode to save battery and only wake up and send an emergency alert if the tilt exceeds a specific safety limit (e.g., 0.5 degrees).
· Wireless Transmission: Using LoRaWAN or Satellite connectivity, the device sends its data wirelessly over several kilometers, eliminating the need for expensive and vulnerable cables on the mountainside.
· Environmental Correction: Much like the crackmeter, it includes an internal thermometer to ensure that tilts caused by the physical expansion of the sensor in the sun are filtered out from real geological movement.
